20ft x 10ft Jackleg Site Cabin
Jackleg Site Cabin
£7800.00
Product Details
The 20ft x 10ft Jackleg Site Cabin from our standard range is usually available for immediate delivery from stock held at our base in Suffolk.
Based on a fixed open plan design we also offer the option to add a canteen, 32 amp plug, contract flooring and aircon to this stunning jackleg range.

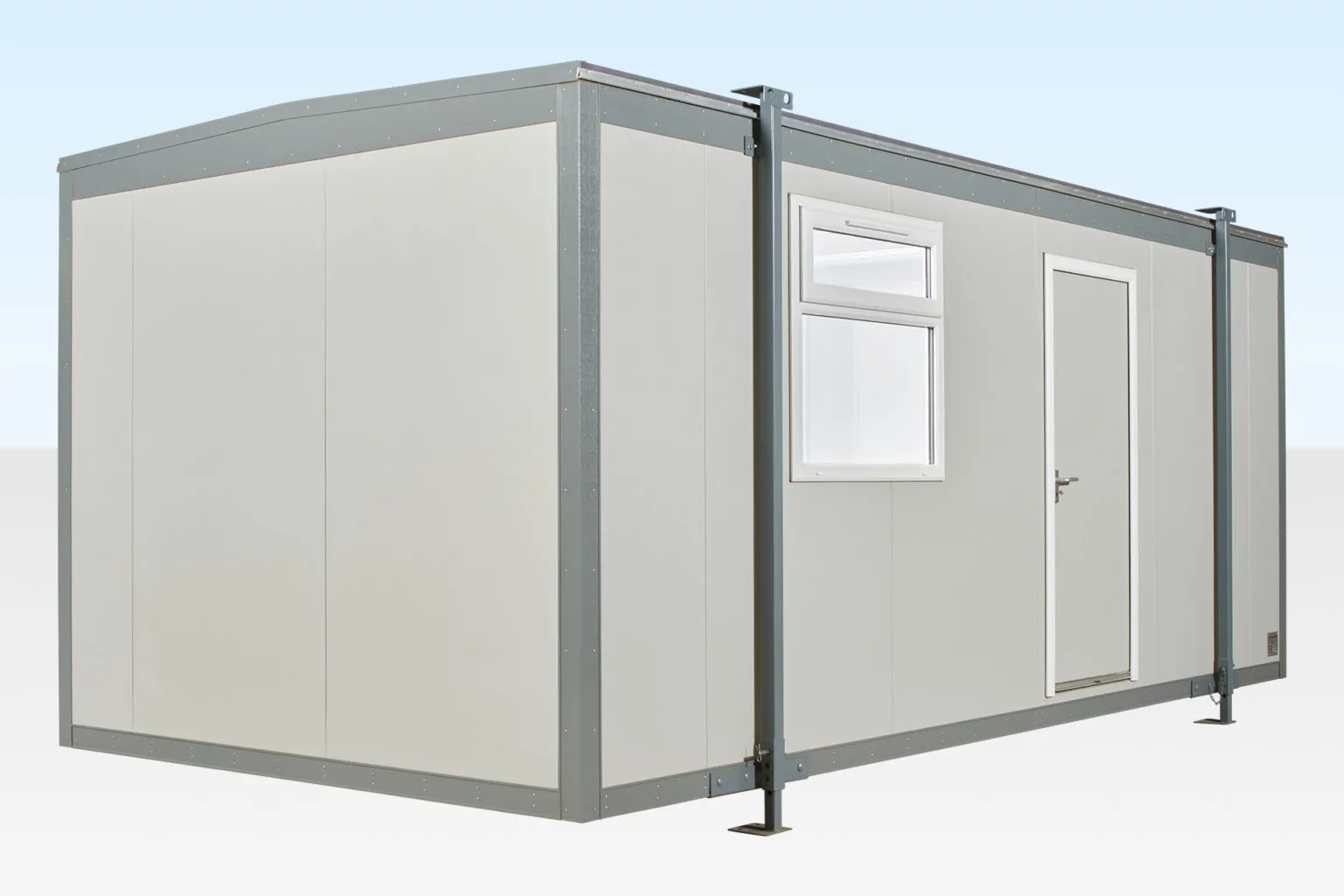

New 20ft Portable Jackleg Office Features
Exterior of cabin finished in Goosewing grey with Merlin grey trim and jacklegs
Lights, sockets timed panel heater and electrics as standard
White trimmed uPVC double glazed window
Cambered roof for drainage
This 20t jackleg cabin is suitable for 3 people with a large desks or 4 people with small desks.
Our standard specification has the window and door in fixed positions (see layout drawing). However, we offer customised options on the location, colour and style. 20 x 10 jacklegs are constructed from 60mm x 60mm box section steel with 600mm bolting and support plate. The base plate is 180mm x 180mm.
Buy this product online or contact the sales team
Product Specifications
External Length (m) | 6.10 |
|---|---|
External Width excluding Jacks (m) | 3.05 |
External Width including Jacks (m) | 3.17 |
External Height (m) | 2.63 |
Internal Length (m) | 5.98 |
Internal Width (m) | 2.93 |
Internal Height (m) | 2.23 |
Door Width (m) | 0.84 |
Door Height (m) | 1.98 |
Floor Type | OSB3 Board m/r 2440 x 1220 x 18 mm TG2LE |
No. UPVc Double Glazed Windows | 2 |
No. of LED Strips or Lights | 2 |
No. Panel Heaters with Timer | 1 |
No. of twin 13A sockets | 2 |
Internal Floor Covering | Vinyl 2mm Cusion Grey Wood Plank Effect |
Internal Wall Covering | Vinyl Faced White Plasterboard 2400 x 1200mm x 12.5mm |
Electrical Requirements. (Amps) | 230v 63 Amp RCD |
